HP USB-C Dock Station G5 (SKUQ5S2VV3)

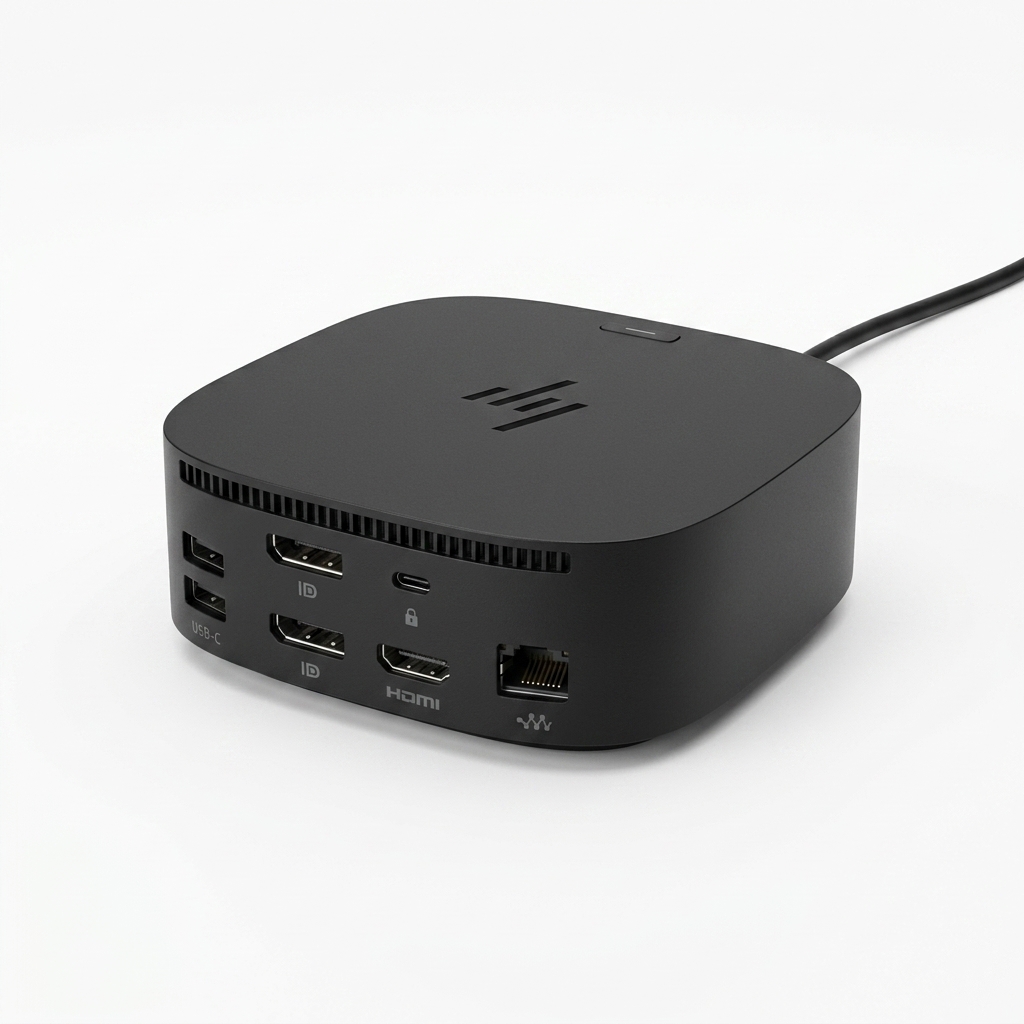

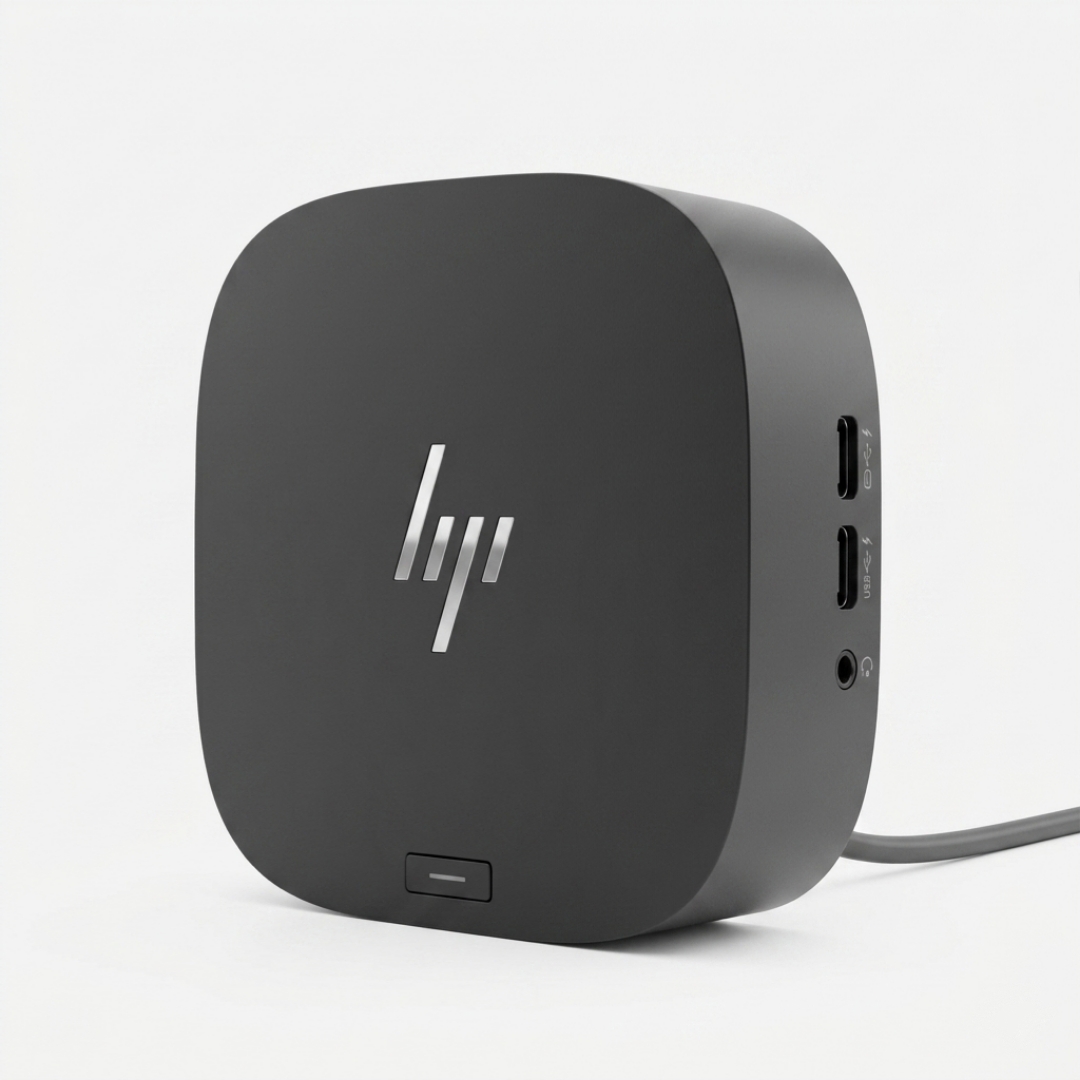

HP USB-C Dock Station G5

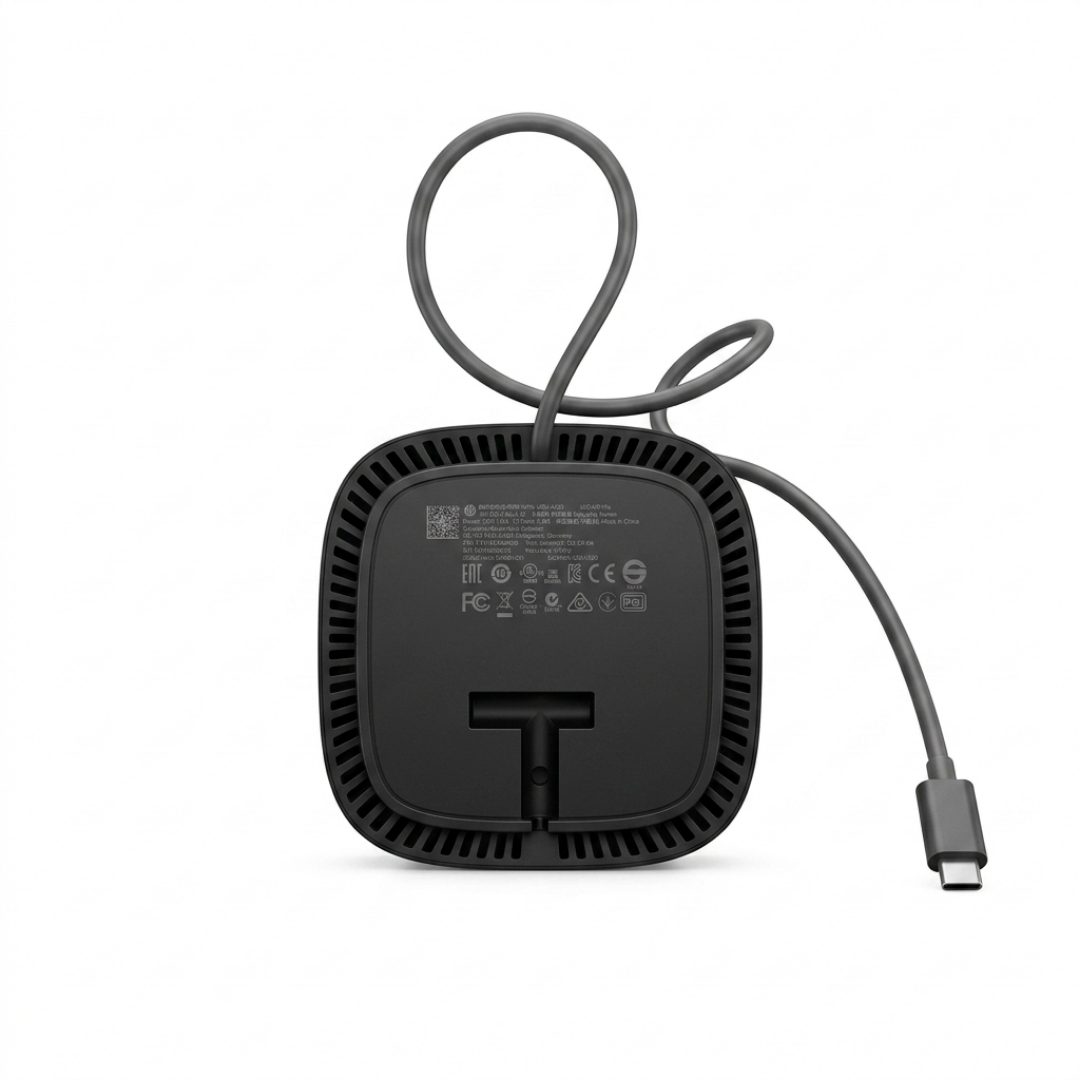

The dock features a compact 5x5 inch footprint and includes a built-in 1-meter USB-C cable.

• Video Outputs: 2x DisplayPort 1.4, 1x HDMI 2.0. USB Ports:
  • Front: 1x USB-C port with data and 15W power out.
  • Side: 2x USB 3.0 Type-A charging ports.
  • Back: 2x USB 3.0 Type-A charging ports.
• Networking: 1x RJ45 Gigabit Ethernet port.
• Audio: 1x 3.5mm combo audio jack.
• Security: 1x Standard Kensington lock slot.

Monitor Support The dock can support up to three displays simultaneously, including the laptop screen.

• Single Monitor: Up to 4K resolution at 60Hz.
• Dual Monitors: Up to dual 4K at 60Hz (depends on host system capabilities).
• Triple Monitors: Up to three FHD @ 60Hz or three QHD @ 60Hz for systems supporting DisplayPort 1.4 with Compression.

Power Delivery

• HP Laptops: Provides up to 100W of power via the host USB-C cable.
• Non-HP Laptops: Typically provides up to 75W of power to compatible third-party devices.
• Power Supply: Ships with a 120W AC adapter.
